INSTALLATION

PROCEDURE

1. INSTALL FRONT CORNER ULTRASONIC SENSOR

HINT:

Use the same procedure for the RH side and LH side.
The following procedure is for the LH side.

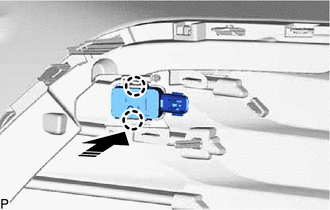

(a) Engage the 2 claws to install the front corner ultrasonic sensor as shown in the illustration.

Install in this Direction

(b) Connect the connector.

2. INSTALL FRONT CENTER ULTRASONIC SENSOR

HINT:

Use the same procedure for the RH side and LH side.
The following procedure is for the LH side.

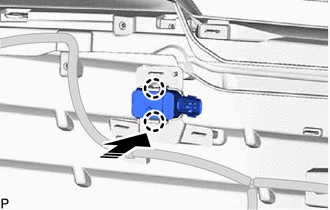

(a) Engage the 2 claws to install the front center ultrasonic sensor as shown in the illustration.

Install in this Direction

(b) Connect the connector.

3. INSTALL FRONT BUMPER ASSEMBLY

Click here

4. PERFORM CALIBRATION

for Gasoline Model: Click here

for HV Model: Click here

SST: 09989-00020
