REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during ultrasonic sensor removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced (for Gasoline Model)

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function When Necessary Procedures are not Performed

Link
  • Front bumper assembly
  • Ultrasonic sensor
  • Measure ultrasonic sensor detection angle
  • Ultrasonic sensor detection angle registration
  • Intelligent Clearance Sonar System
  • Intuitive Parking Assist System

Front bumper assembly (w/ Panoramic View Monitor System)

Front television camera view adjustment

Panoramic View Monitor System

Necessary Procedure After Parts Removed/Installed/Replaced (for HV Model)

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function When Necessary Procedures are not Performed

Link
  • Front bumper assembly
  • Ultrasonic sensor
  • Measure ultrasonic sensor detection angle
  • Ultrasonic sensor detection angle registration
  • Intelligent Clearance Sonar System
  • Intuitive Parking Assist System

Front bumper assembly (w/ Panoramic View Monitor System)

Front television camera view adjustment

Panoramic View Monitor System

PROCEDURE

1. REMOVE FRONT BUMPER ASSEMBLY

Click here

2. REMOVE FRONT CENTER ULTRASONIC SENSOR

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

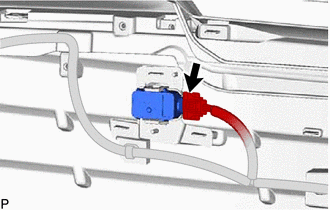

(a) Disconnect the connector.

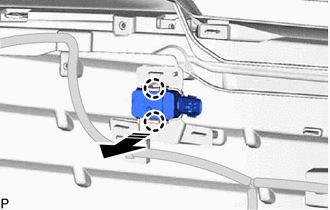

(b) Disengage the 2 claws and remove the front center ultrasonic sensor as shown in the illustration.

Remove in this Direction

3. REMOVE FRONT CORNER ULTRASONIC SENSOR

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

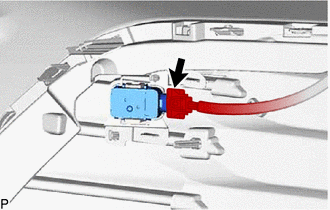

(a) Disconnect the connector.

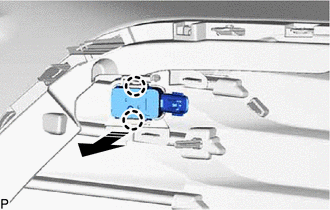

(b) Disengage the 2 claws and remove the front corner ultrasonic sensor as shown in the illustration.

Remove in this Direction
