Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Components

COMPONENTS

ILLUSTRATION

*1

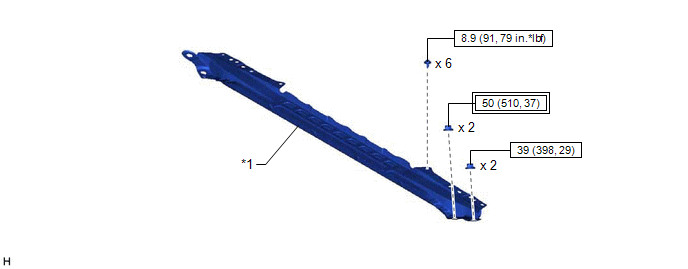

FRONT CENTER UPPER SUSPENSION BRACE SUB-ASSEMBLY

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

ILLUSTRATION

*1

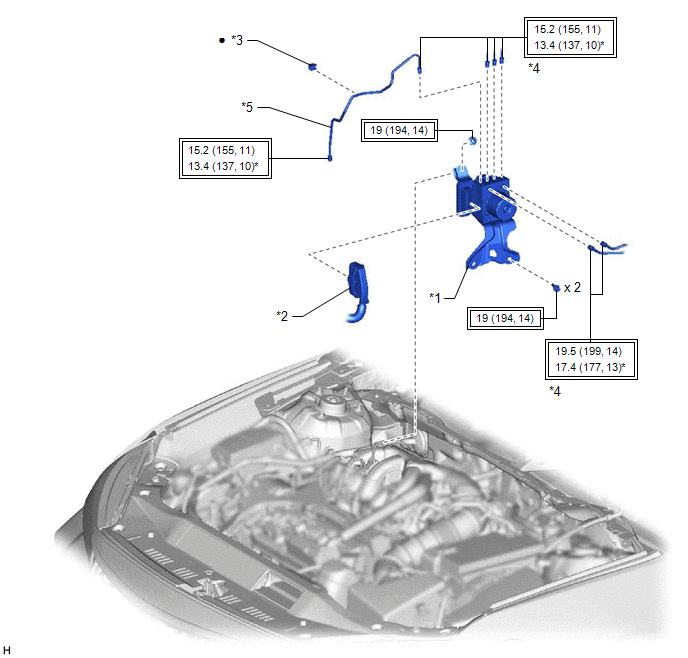

BRAKE ACTUATOR WITH BRACKET

*2

CONNECTOR

*3

BRAKE TUBE CLAMP

*4

BRAKE LINE

*5

FRONT NO. 3 BRAKE TUBE

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

*

For use with a union nut wrench

Non-reusable part

-

-

ILLUSTRATION

*1

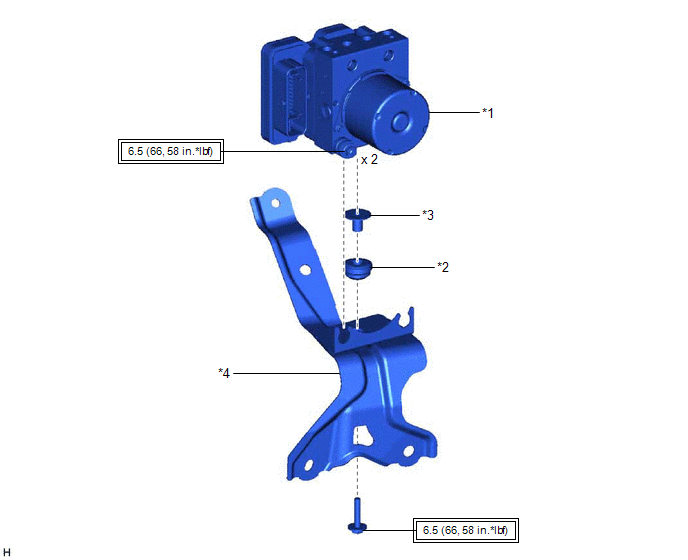

BRAKE ACTUATOR ASSEMBLY

*2

BRAKE ACTUATOR BOLT CUSHION

*3

NO. 1 BRAKE ACTUATOR CASE COLLAR

*4

BRAKE ACTUATOR BRACKET ASSEMBLY

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

-

-

    Brake Actuator(for Gasoline Model)

    Installation
