INSPECTION

PROCEDURE

1. INSPECT SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY)

(a) No. 1 transmission shift switch assembly:

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

1 (SDN) - 2 (ECC)

"-" (Down shift) shift paddle switch operated and held

Below 13 Ω

"-" (Down shift) shift paddle switch not operated

10 kΩ or higher

1 (SDN) - 3 (ECC1)

"-" (Down shift) shift paddle switch operated and held

Below 13 Ω

"-" (Down shift) shift paddle switch not operated

10 kΩ or higher

If the result is not as specified, replace the No. 1 transmission shift switch assembly.

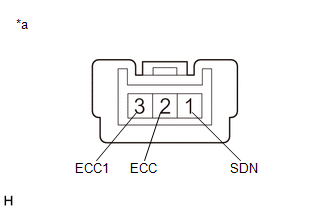

*a

Component without harness connected

(No. 1 Transmission Shift Switch Assembly)

(b) No. 2 transmission shift switch assembly:

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

1 (SUP) - 2 (ECC)

"+" (Up shift) shift paddle switch operated and held

Below 13 Ω

"+" (Up shift) shift paddle switch not operated

10 kΩ or higher

If the result is not as specified, replace the No. 2 transmission shift switch assembly.

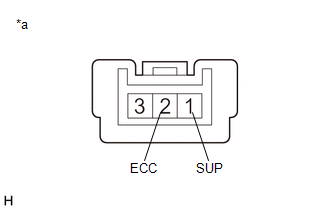

*a

Component without harness connected

(No. 2 Transmission Shift Switch Assembly)
