Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Removal

REMOVAL

PROCEDURE

1. REMOVE COOL AIR INTAKE DUCT SEAL

Click here

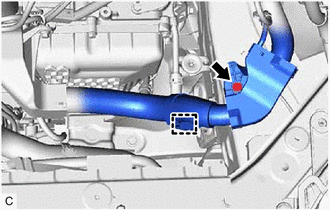

2. REMOVE INLET AIR CLEANER ASSEMBLY

Click here

3. REMOVE AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE

Click here

4. REMOVE VACUUM SWITCHING VALVE (for Active Control Engine Mount System)

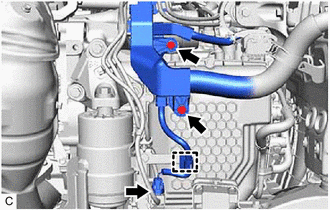

(a) Remove the bolt and disengage the wire harness clamp to separate the engine wire.

(b) Remove the 2 bolts.

(c) Disengage the wire harness clamp and disconnect the vacuum switching valve (for active control engine mount system) connector.

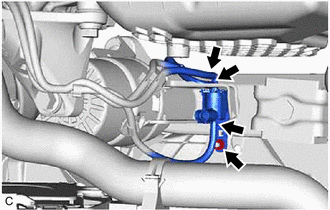

(d) Disconnect the 3 vacuum hoses from the vacuum switching valve (for active control engine mount system).

(e) Remove the nut and vacuum switching valve (for active control engine mount system) from the front engine mounting insulator.

    Installation

    2gr-fks Engine Mechanical
