COMPONENTS

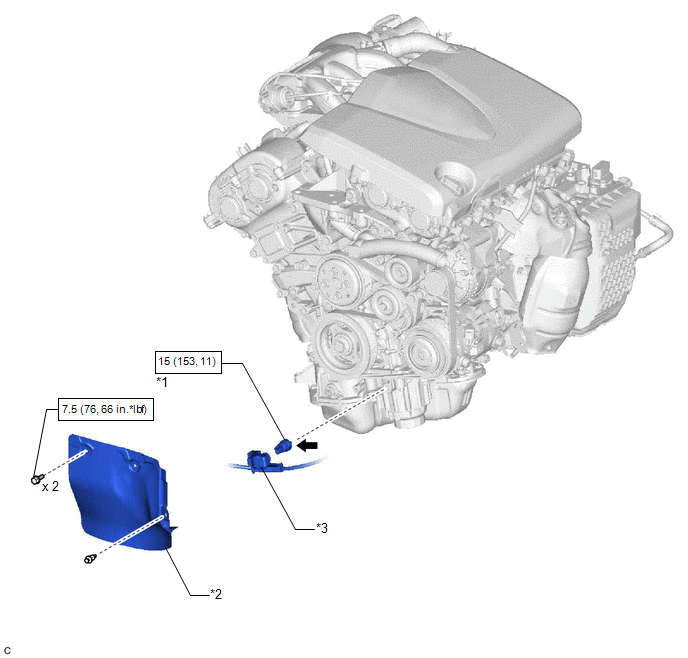

ILLUSTRATION

*1

ENGINE OIL PRESSURE SWITCH ASSEMBLY

*2

FRONT FENDER APRON SEAL RH

*3

WIRE HARNESS PROTECTOR

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

Adhesive 1344

★

Precoated part

-

-
