Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced starter assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link

*: When performing learning using the Techstream.

Click here

Battery terminal is disconnected/reconnected

Perform steering sensor zero point calibration

Lane departure alert system (w/ Steering Control)

Pre-collision system

Intelligent clearance sonar system*

Lighting System (for Gasoline Model with Cornering Light)

Memorize steering angle neutral point

Parking assist monitor system

Panoramic view monitor system

PROCEDURE

1. PRECAUTION

NOTICE:

After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

Click here

2. REMOVE BATTERY

Click here

3. REMOVE COOL AIR INTAKE DUCT SEAL

Click here

4. REMOVE V-BANK COVER SUB-ASSEMBLY

Click here

5. REMOVE INLET AIR CLEANER ASSEMBLY

Click here

6. REMOVE AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE

Click here

7. REMOVE ECM

Click here

8. REMOVE BATTERY CLAMP SUB-ASSEMBLY

Click here

9. REMOVE STARTER ASSEMBLY

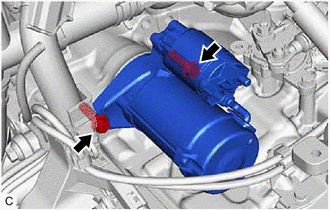

(a) Disconnect the starter assembly connector.

(b) Open the terminal cap.

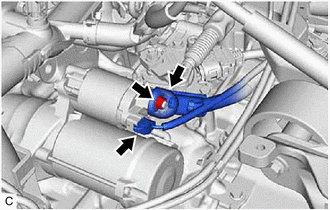

(c) Remove the nut and disconnect the engine wire from the terminal 30.

(d) Remove the 2 bolts and starter assembly.

    Reassembly

    Starting System
