Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Parts Location

PARTS LOCATION

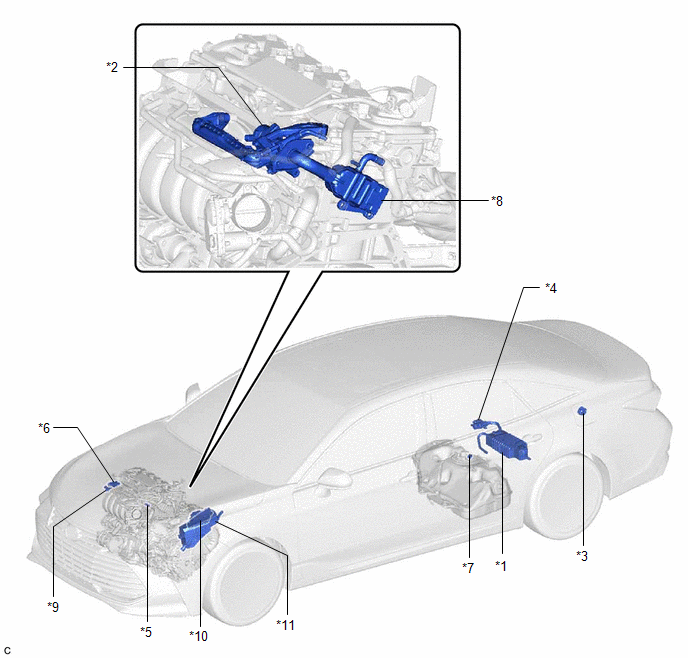

ILLUSTRATION

*1

CANISTER (CHARCOAL CANISTER ASSEMBLY)

*2

EGR VALVE ASSEMBLY

*3

FUEL TANK CAP ASSEMBLY

*4

FUEL VAPOR CONTAINMENT VALVE (FUEL TANK SOLENOID MAIN VALVE ASSEMBLY)

*5

PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)

*6

PURGE VALVE (PURGE VSV)

*7

FUEL TANK PRESSURE SENSOR (VAPOR PRESSURE SENSOR ASSEMBLY)

*8

EGR COOLER ASSEMBLY

*9

E.F.I. VACUUM SENSOR ASSEMBLY (MANIFOLD ABSOLUTE PRESSURE SENSOR)

*10

ECM

*11

NO. 1 ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY

- EFI-MAIN NO. 1 RELAY

- EFI NO. 1 FUSE

-

-
