1. INSTALL FUEL VAPOR CONTAINMENT VALVE (FUEL TANK SOLENOID MAIN VALVE ASSEMBLY)

(a) Install the fuel vapor containment valve (fuel tank solenoid main valve assembly) to the vehicle body with the 2 nuts.

Torque:

8.0 N·m {82 kgf·cm, 71 in·lbf}

(b) Push the fuel tank vent hose onto the fuel vapor containment valve (fuel tank solenoid main valve assembly) and push in the retainer to engage the lock claws.

NOTICE:

  • Check that there are no scratches or foreign matter around the connecting parts of the fuel tank vent hose and fuel vapor containment valve (fuel tank solenoid main valve assembly) before performing this work.
  • After connecting the fuel tank vent hose, check that the fuel tank vent hose is securely connected by pulling on the fuel tank vent hose.

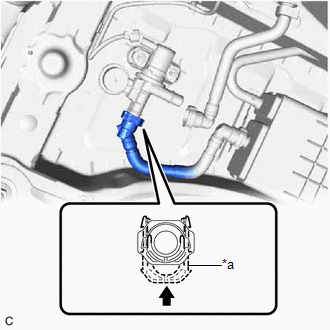

*a

Retainer

Push in

(c) Connect the fuel vapor containment valve (fuel tank solenoid main valve assembly) connector.

(d) Push the fuel tank vent hose sub-assembly onto the fuel vapor containment valve (fuel tank solenoid main valve assembly) and push in the retainer to engage the lock claws.

NOTICE:

  • Check that there are no scratches or foreign matter around the connecting parts of the fuel tank vent hose sub-assembly and fuel vapor containment valve (fuel tank solenoid main valve assembly) before performing this work.
  • After connecting the fuel tank vent hose sub-assembly, check that the fuel tank vent hose sub-assembly is securely connected by pulling on the fuel tank vent hose sub-assembly.

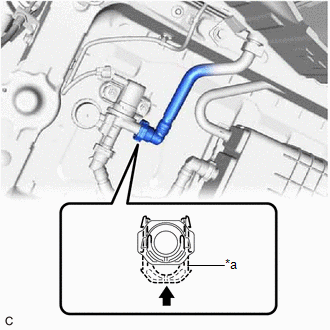

*a

Retainer

Push in
