DESCRIPTION

Refer to DTC P001001.

Click here

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

MIL

Memory

Note

P001100

Camshaft Position "A" - Timing Over-Advanced or System Performance Bank 1

With engine warmed up and while driving in urban area (engine speed 4000 rpm or less), intake side valve timing does not change in advanced position, and target and actual valve timing do not match (1 trip detection logic).

  • Camshaft timing gear assembly
  • ECM

Comes on

DTC stored

SAE Code: P0011

MONITOR DESCRIPTION

This DTC is output when a valve timing stuck condition is detected. With the engine speed at 4000 rpm or less in the advance angle position, if the valve timing does not vary, and there is a large difference in the target and actual valve timing, it is determined that a malfunction has occurred. When this malfunction is detected, the ECM will illuminate the MIL and store this DTC.

MONITOR STRATEGY

Related DTCs

P0011: Advanced camshaft timing

Required Sensors/Components (Main)

Camshaft timing gear assembly

Required Sensors/Components (Related)

Crankshaft position sensor

Camshaft position sensor

Engine coolant temperature sensor

Frequency of Operation

Continuous

Duration

Less than 10 seconds

MIL Operation

Immediate

Sequence of Operation

None

TYPICAL ENABLING CONDITIONS

Monitor runs whenever the following DTCs are not stored

P0010, P1360, P1362, P1364, P1366, P2614 (Motor drive VVT system control module)

P0016 (VVT system - misalignment)

P0101, P0102, P0103 (Mass air flow meter)

P0107, P0108 (Manifold absolute pressure)

P0117, P0118 (Engine coolant temperature sensor)

P0125 (Insufficient engine coolant temperature for closed loop fuel control)

P0335, P0337, P0338 (Crankshaft position sensor)

P0340, P0342, P0343 (Camshaft position sensor)

P0365, P0367, P0368 (Exhaust camshaft position sensor)

Auxiliary battery voltage

11 V or higher

Engine speed

500 to 4000 rpm

Engine coolant temperature

75 to 120°C (167 to 248°F)

TYPICAL MALFUNCTION THRESHOLDS

Both of the following conditions are met

-

Deviation of actual valve timing and target valve timing

More than 5°CA (Crankshaft Angle) for 5 seconds or more

Valve timing

No change at advanced valve timing

MONITOR RESULT

Refer to detailed information in Checking Monitor Status.

Click here

P0011: Exhaust Gas Recirculation/VVT / IN VVT STUCK B1

Monitor ID

Test ID

Scaling

Unit

Description

$35

$81

Multiply by 0.01

Second

Forced movement of cam timing control motor time

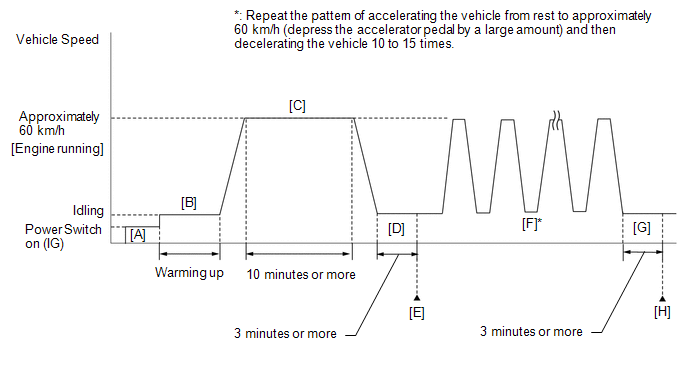

CONFIRMATION DRIVING PATTERN

HINT:

  • After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

    Click here

  • When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.

    Click here

  1. Remove the EFI-MAIN NO. 4 fuse from the No. 1 engine room relay block and No. 1 junction block assembly and wait for at least 60 seconds.

    HINT:

    Clear the DTC without using the Techstream.

  2. Reinstall the EFI-MAIN NO. 4 fuse.
  3. Connect the Techstream to the DLC3.
  4. Turn the power switch on (IG) [A].
  5. Turn the Techstream on.
  6. Put the engine in Inspection Mode (Maintenance Mode).

    Click here

  7. Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or higher [B].
  8. With the engine running, drive the vehicle at approximately 60 km/h (37 mph) for 10 minutes or more [C].

    CAUTION:

    When performing the confirmation driving pattern, obey all speed limits and traffic laws.

    HINT:

    If the engine stops, further depress the accelerator pedal to restart the engine.

  9. Idle the engine for 3 minutes or more [D].
  10. Enter the following menus: Powertrain / Engine / Trouble Codes [E].
  11. Read the pending DTCs.

    HINT:

    • If a pending DTC is output, the system is malfunctioning.
    • If a pending DTC is not output, perform the following procedure.
  12. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  13. Input the DTC: P001100.
  14. Check the DTC judgment result.

    Techstream Display

    Description

    NORMAL

    • DTC judgment completed
    • System normal

    ABNORMAL

    • DTC judgment completed
    • System abnormal

    INCOMPLETE

    • DTC judgment not completed
    • Perform driving pattern after confirming DTC enabling conditions

    HINT:

    • If the judgment result is NORMAL, the system is normal.
    • If the judgment result is ABNORMAL, the system has a malfunction.
    • If the judgment result is INCOMPLETE, perform steps [F] through [H].
    • [A] to [E]: Normal judgment procedure.

      The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

    • When clearing the permanent DTCs, do not disconnect the cable from the auxiliary battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.
  15. With the engine running, repeat the pattern of accelerating the vehicle from rest to approximately 60 km/h (37 mph) and then decelerating the vehicle 10 to 15 times [F].

    CAUTION:

    When performing the confirmation driving pattern, obey all speed limits and traffic laws.

    HINT:

    • If the engine stops, further depress the accelerator pedal to restart the engine.
    • Depress the accelerator pedal by a large amount.
  16. Idle the engine for 3 minutes or more [G].
  17. Enter the following menus: Powertrain / Engine / Trouble Codes [H].
  18. Read the pending DTCs.

    HINT:

    • If a pending DTC is output, the system is malfunctioning.
    • If a pending DTC is not output, perform the following procedure.
  19. Check the DTC judgment result again.

    HINT:

    • If the judgment result is NORMAL, the system is normal.
    • If the judgment result is ABNORMAL, the system has a malfunction.
    • [A] to [H]: Normal judgment procedure.

      The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

    • When clearing the permanent DTCs, do not disconnect the cable from the auxiliary battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.

CAUTION / NOTICE / HINT

NOTICE:

  • Vehicle Control History may be stored in the hybrid vehicle control ECU assembly if the engine is malfunctioning. Certain vehicle condition information is recorded when Vehicle Control History is stored. Reading the vehicle conditions recorded in both the Freeze Frame Data and Vehicle Control History can be useful for troubleshooting.

    Click here

    (Select Powertrain in Health Check and then check the time stamp data.)

    Click here

  • If any "Engine Malfunction" Vehicle Control History item has been stored in the hybrid vehicle control ECU assembly, make sure to clear it. However, as all Vehicle Control History items are cleared simultaneously, if any Vehicle Control History items other than "Engine Malfunction" are stored, make sure to perform any troubleshooting for them before clearing Vehicle Control History.

    Click here

HINT:

  • The Techstream only:

    By using the Control the VVT-iE Opening Angle Bank 1 Active Test, it can be determined if the VVT-iE system is malfunctioning.

    1. Remove the EFI-MAIN NO. 4 fuse from the No. 1 engine room relay block and No. 1 junction block assembly and wait for at least 60 seconds.

      HINT:

      Clear the DTC without using the Techstream.

    2. Reinstall the EFI-MAIN NO. 4 fuse.
    3. Connect the Techstream to the DLC3.
    4. Turn the power switch on (IG).
    5. Turn the Techstream on.
    6. Put the engine in Inspection Mode (Maintenance Mode).

      Click here

    7. Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or higher.
    8. Enter the following menus: Powertrain / Engine / Active Test / Control the VVT-iE Opening Angle Bank 1 / Data List / Intake VVT Change Angle Bank 1 and Intake VVT Target Angle Bank 1.
    9. Read the Data List while performing the Active Test with the engine idling. OK:

      Active Test Movement Order

      Difference between "Intake VVT Change Angle Bank 1" and "Intake VVT Target Angle Bank 1"

      0 deg → 10 deg → 20 deg → 40 deg → 0 deg → 10 deg → END

      Within 4 DegFR

  • Read Freeze Frame Data using the Techstream. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.

PROCEDURE

1.

CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P001100)

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Engine / Trouble Codes.

(e) Read the DTCs.

Powertrain > Engine > Trouble Codes

Result

Proceed to

DTC P001100 is output

A

DTC P001100 and other DTCs are output

B

HINT:

If any DTCs other than P001100 are output, troubleshoot those DTCs first.

B

GO TO DTC CHART

A

2.

REPLACE CAMSHAFT TIMING GEAR ASSEMBLY

(a) Replace the camshaft timing gear assembly.

Click here

HINT:

Perform "Inspection After Repair" after replacing the camshaft timing gear assembly.

Click here

NEXT

3.

CLEAR DTC

(a) Remove the EFI-MAIN NO. 4 fuse from the No. 1 engine room relay block and No. 1 junction block assembly and wait for at least 60 seconds.

HINT:

Clear the DTC without using the Techstream.

(b) Reinstall the EFI-MAIN NO. 4 fuse.

NEXT

4.

CONFIRM WHETHER MALFUNCTION HAS BEEN SUCCESSFULLY REPAIRED

(a) Drive the vehicle in accordance with the driving pattern described in the Confirmation Driving Pattern.

(b) Enter the following menus: Powertrain / Engine / Trouble Codes.

(c) Read the DTCs.

Powertrain > Engine > Trouble Codes

Result

Proceed to

DTCs are not output

A

DTC P001100 is output

B

A

END

B

REPLACE ECM
