Toyota Avalon Service & Repair Manual: Battery Cooling Filter

Components

COMPONENTS

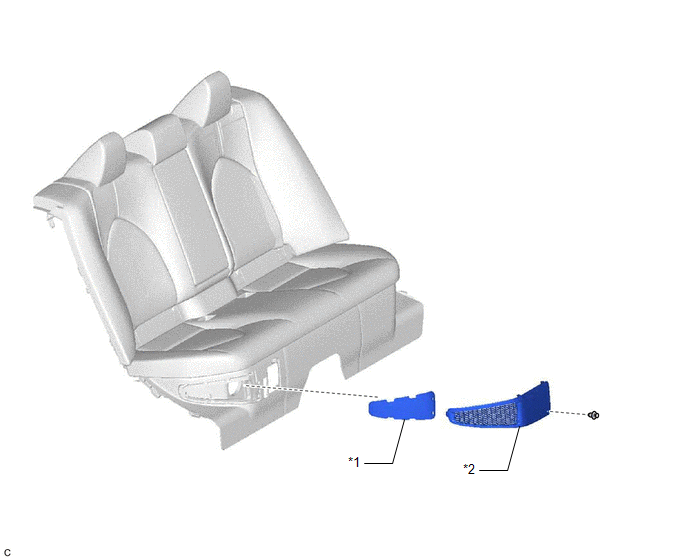

ILLUSTRATION

*1

NO. 1 HV BATTERY INTAKE FILTER

*2

BATTERY SERVICE HOLE COVER

Inspection

INSPECTION

PROCEDURE

1. INSPECT NO. 1 HV BATTERY INTAKE FILTER

Click here

2. CLEAN NO. 1 HV BATTERY INTAKE FILTER

Click here

Installation

INSTALLATION

PROCEDURE

1. INSTALL NO. 1 HV BATTERY INTAKE FILTER

Click here

2. INSTALL BATTERY SERVICE HOLE COVER

Click here

3. CLEAR DTC

HINT:

If the message "Maintenance Required for Traction Battery Cooling Parts See Owner's Manual" is displayed on the multi-information display, clean or replace the No. 1 HV battery intake filter, and clear the DTCs to reset the learning values even if no DTCs are output.

Click here

Removal

REMOVAL

PROCEDURE

1. REMOVE BATTERY SERVICE HOLE COVER

Click here

2. REMOVE NO. 1 HV BATTERY INTAKE FILTER

Click here
