INSTALLATION

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. INSTALL REAR NO. 2 SPEAKER ASSEMBLY

NOTICE:

Do not touch the speaker cone.

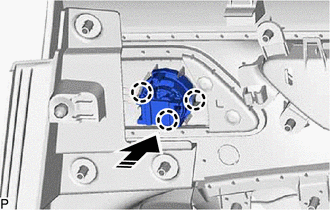

(a) for 8 Speakers:

(1) Engage the 3 claws to install the rear No. 2 speaker assembly as shown in the illustration.

Install in this Direction

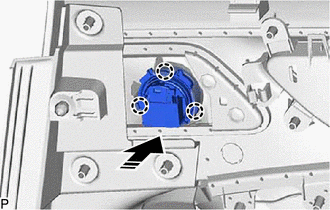

(b) for 14 Speakers:

(1) Engage the 3 claws to install the rear No. 2 speaker assembly as shown in the illustration.

Install in this Direction

2. INSTALL REAR SPEAKER ASSEMBLY

NOTICE:

Do not touch the speaker cone.

(a) Connect the connector.

(b) Engage the 2 guides to temporarily install the rear speaker assembly.

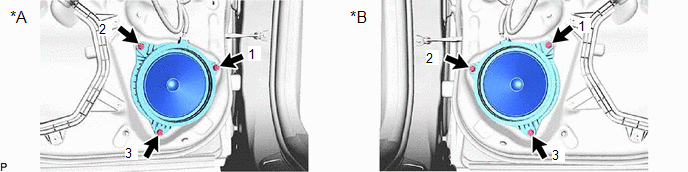

(c) Install the rear speaker assembly with the 3 screws.

*A

for LH Side

*B

for RH Side

HINT:

Install the screws in the order shown in the illustration.

3. INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY

Click here

4. INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR UPPER ARMREST BASE PANEL

Click here

5. INSTALL REAR DOOR TRIM ASSEMBLY COVER

Click here

6. INSTALL REAR DOOR ARMREST COVER SUB-ASSEMBLY

Click here

7. INSPECT POWER WINDOW OPERATION

for Gasoline Model: Click here

for HV Model: Click here
