Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Removal

REMOVAL

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. REMOVE REAR DOOR ARMREST COVER SUB-ASSEMBLY

Click here

2. REMOVE REAR DOOR TRIM ASSEMBLY COVER

Click here

3. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR UPPER ARMREST BASE PANEL

Click here

4. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY

Click here

5. REMOVE REAR SPEAKER ASSEMBLY

NOTICE:

Do not touch the speaker cone.

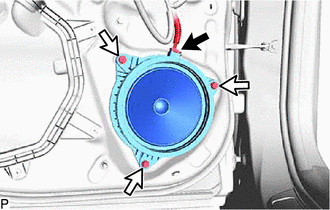

(a) Disconnect the connector.

(b) Remove the 3 screws.

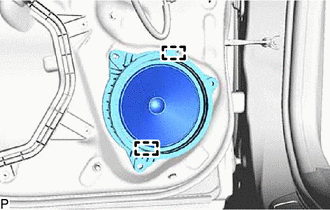

(c) Disengage the 2 guides to remove the rear speaker assembly.

6. REMOVE REAR NO. 2 SPEAKER ASSEMBLY

NOTICE:

Do not touch the speaker cone.

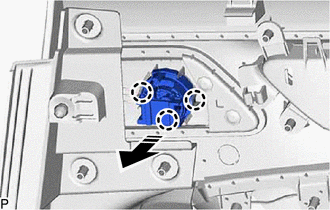

(a) for 8 Speakers:

(1) Disengage the 3 claws to remove the rear No. 2 speaker assembly as shown in the illustration.

Remove in this Direction

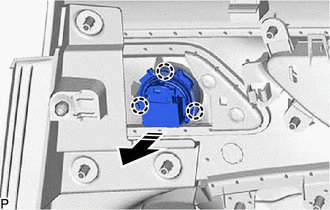

(b) for 14 Speakers:

(1) Disengage the 3 claws to remove the rear No. 2 speaker assembly as shown in the illustration.

Remove in this Direction
