Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Installation

INSTALLATION

PROCEDURE

1. INSTALL STEREO COMPONENT AMPLIFIER ASSEMBLY

2. INSTALL NO. 2 AMPLIFIER BRACKET

(a) Install the No. 2 amplifier bracket with the 2 screws.

3. INSTALL NO. 1 AMPLIFIER BRACKET

(a) Engage the guide.

(b) Install the No. 1 amplifier bracket with the 2 screws.

4. INSTALL STEREO COMPONENT AMPLIFIER ASSEMBLY WITH BRACKET

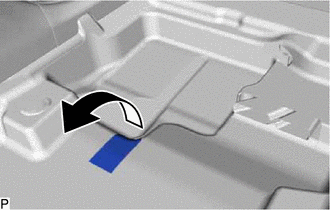

(a) Turn back the front floor carpet assembly and front floor mat as shown in the illustration.

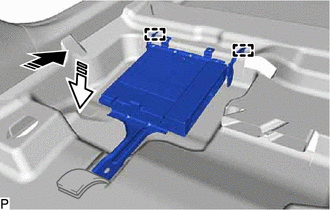

(b) Engage the 2 guides and temporarily install the stereo component amplifier assembly with bracket as shown in the illustration.

Install in this Direction (1)

Install in this Direction (2)

(c) Install the stereo component amplifier assembly with bracket with the bolt.

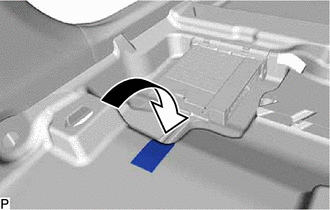

(d) Install the front floor carpet assembly and front floor mat to its original position as shown in the illustration.

(e) Engage the clamp.

(f) Connect each connector.

5. INSTALL AUDIO AMPLIFIER COVER

(a) Install the audio amplifier cover with the 3 clips.

6. INSTALL FRONT SEAT ASSEMBLY LH

Click here

    Components

    Removal
