Toyota Avalon Service & Repair Manual: Stereo Jack Adapter Assembly

Components

COMPONENTS

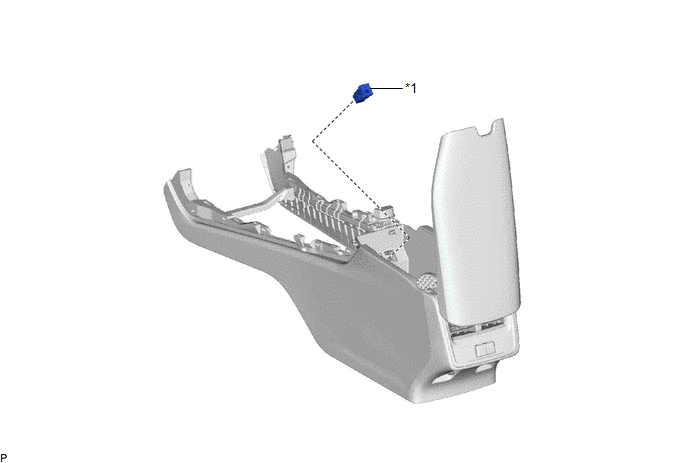

ILLUSTRATION

*1

STEREO JACK ADAPTER ASSEMBLY

-

-

Installation

INSTALLATION

PROCEDURE

1. INSTALL STEREO JACK ADAPTER ASSEMBLY

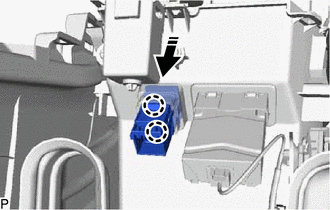

(a) Engage the 2 claws to install the stereo jack adapter assembly as shown in the illustration.

Install in this Direction

2. INSTALL CONSOLE ASSEMBLY

Click here

Removal

REMOVAL

PROCEDURE

1. REMOVE CONSOLE ASSEMBLY

Click here

2. REMOVE STEREO JACK ADAPTER ASSEMBLY

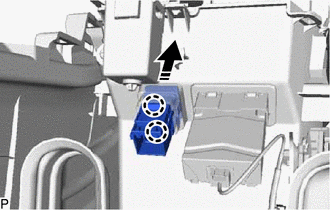

(a) Disengage the 2 claws and remove the stereo jack adapter assembly as shown in the illustration.

Remove in this Direction
