Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Window Glass Antenna Wire

On-vehicle Inspection

ON-VEHICLE INSPECTION

PROCEDURE

1. INSPECT WINDOW GLASS ANTENNA WIRE

(a) Check the continuity of the antenna.

HINT:

Check for continuity at the center of each antenna wire as shown in the illustration.

NOTICE:

  • When cleaning the glass, wipe it in the direction of the wire with a soft dry cloth. Take care not to damage the wire. Do not use detergents or glass cleaners with abrasive ingredients.
  • When measuring resistance, wrap a piece of tin foil around the tip of the negative probe and press the foil against the wire with your finger, as shown in the illustration.

OK:

There is continuity in the antenna.

If the result is not as specified, repair the window glass antenna wire.

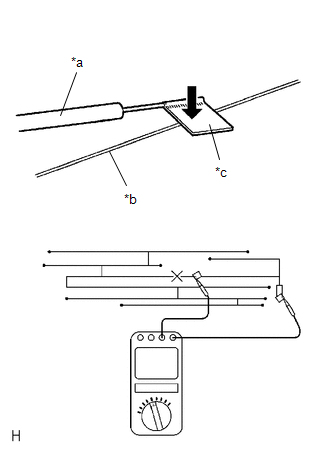

*a

Tester Probe

*b

Antenna Wire

*c

Tin Foil

Repair

REPAIR

PROCEDURE

1. REPAIR WINDOW GLASS ANTENNA WIRE

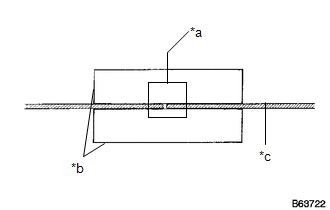

*a

Repair Point

*b

Masking Tape

*c

Broken Wire

(a) Clean the broken wire tips with a grease, wax and silicone remover.

(b) Place masking tape along both sides of the wire to be repaired.

(c) Thoroughly mix the repair agent (Dupont paste No. 4817 or equivalent).

(d) Using a fine tip brush, apply a small amount of the repair agent to the wire.

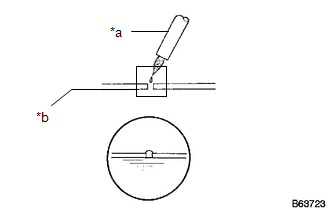

*a

Fine Tip Brush

*b

Repair Point

(e) After a few minutes, remove the masking tape.
