REPLACEMENT

PROCEDURE

1. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

Click here

2. REMOVE LUGGAGE COMPARTMENT LIGHT BULB

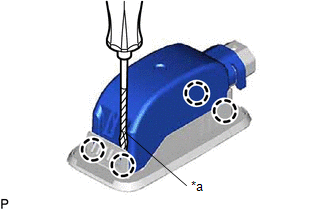

(a) Using a screwdriver with its tip wrapped with protective tape, disengage the 4 claws to remove the shade from the No. 1 luggage compartment light lens.

*a

Protective Tape

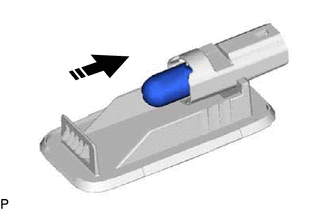

(b) Remove the luggage compartment light bulb from the No. 1 luggage compartment light lens as shown in the illustration.

Remove in this Direction

3. INSTALL LUGGAGE COMPARTMENT LIGHT BULB

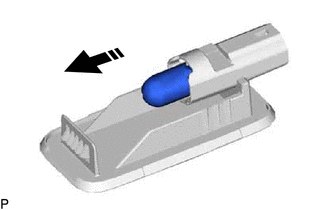

(a) Install the luggage compartment light bulb to the No. 1 luggage compartment light lens as shown in the illustration.

Install in this Direction

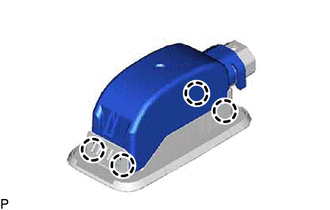

(b) Engage the 4 claws to install the shade to the No. 1 luggage compartment light lens.

4. INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

Click here
