Toyota Avalon Service & Repair Manual: Electrical Key Oscillator(for Luggage Compartment)

Toyota Avalon Service & Repair Manual / Vehicle Interior / Theft Deterrent / Keyless Entry / Electrical Key Oscillator(for Luggage Compartment)

Components

COMPONENTS

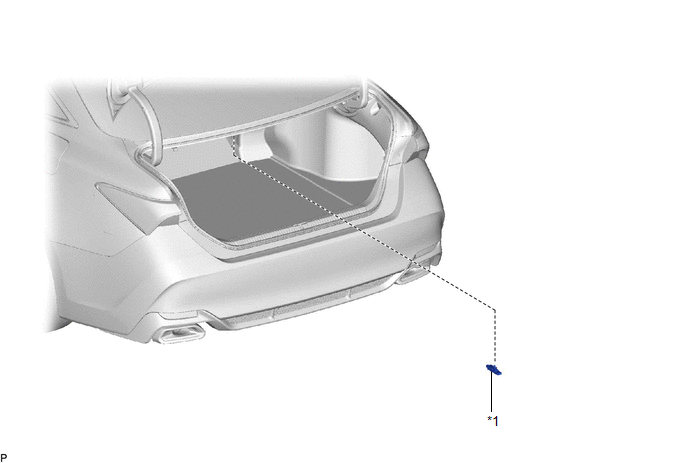

ILLUSTRATION

*1

NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY

-

-

Installation

INSTALLATION

PROCEDURE

1. INSTALL NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY

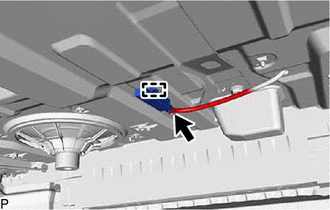

(a) Engage the clamp to install the No. 1 indoor electrical key antenna assembly.

NOTICE:

Be careful when installing the No. 1 indoor electrical key antenna assembly. If the No. 1 indoor electrical key antenna assembly is dropped, replace it with a new one.

(b) Connect the connector.

Removal

REMOVAL

PROCEDURE

1. REMOVE NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY

(a) Disconnect the connector.

(b) Disengage the clamp to remove the No. 1 indoor electrical key antenna assembly.

NOTICE:

Be careful when removing the No. 1 indoor electrical key antenna assembly. If the No. 1 indoor electrical key antenna assembly is dropped, replace it with a new one.

    Electrical Key Oscillator(for Front Floor)

    Electrical Key Oscillator(for Outside Luggage Compartment)
