Components

COMPONENTS

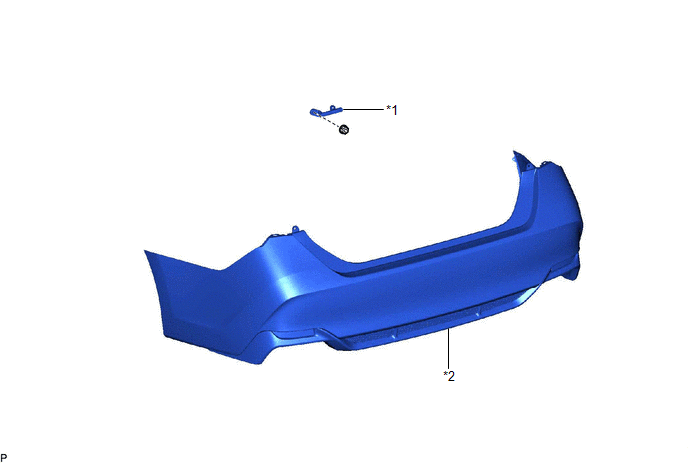

ILLUSTRATION

*1

ELECTRICAL KEY ANTENNA

*2

REAR BUMPER ASSEMBLY

Installation

INSTALLATION

PROCEDURE

1. INSTALL ELECTRICAL KEY ANTENNA

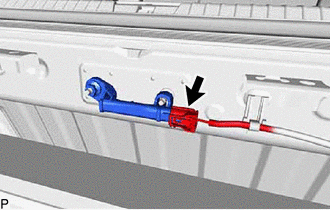

(a) Engage the guide and install the electrical key antenna with the nut.

NOTICE:

Be careful when installing the electrical key antenna. If the electrical key antenna is dropped, replace it with a new one.

(b) Connect the connector.

2. INSTALL REAR BUMPER ASSEMBLY

Click here

Removal

REMOVAL

PROCEDURE

1. REMOVE REAR BUMPER ASSEMBLY

Click here

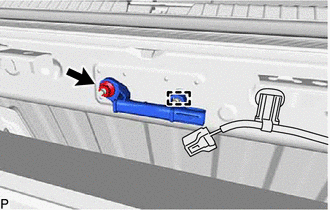

2. REMOVE ELECTRICAL KEY ANTENNA

(a) Disconnect the connector.

(b) Remove the nut.

(c) Disengage the guide to remove the electrical key antenna.

NOTICE:

Be careful when removing the electrical key antenna. If the electrical key antenna is dropped, replace it with a new one.

    Electrical Key Oscillator(for Luggage Compartment)

    Electrical Key Oscillator(for Rear Floor)
