Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Components

COMPONENTS

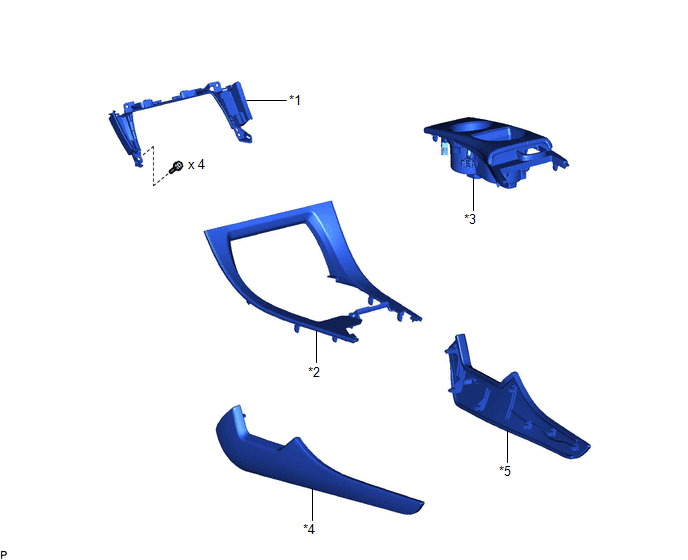

ILLUSTRATION

*1

CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

*2

CONSOLE BOX POCKET SUB-ASSEMBLY

*3

FRONT CONSOLE UPPER PANEL GARNISH

*4

LOWER INSTRUMENT PANEL FINISH PANEL LH

*5

LOWER INSTRUMENT PANEL FINISH PANEL RH

-

-

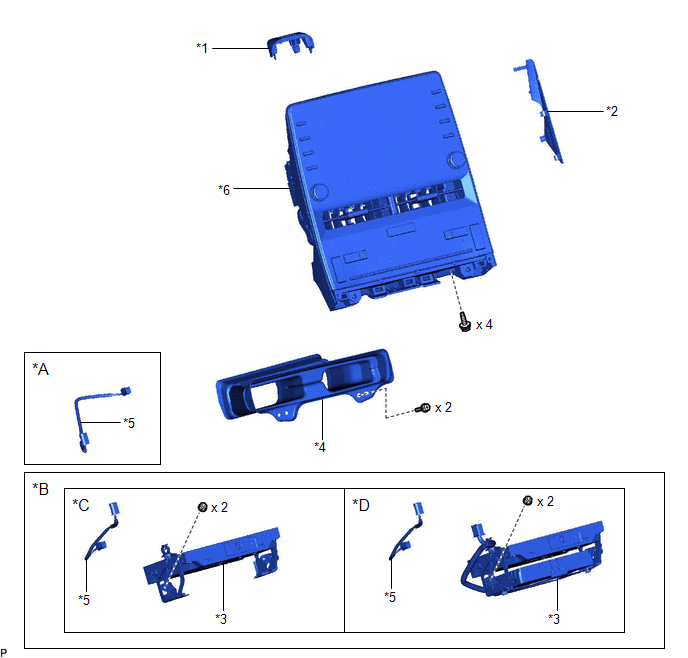

ILLUSTRATION

*A

w/o Navigation System

*B

w/ Navigation System

*C

w/o Manual (SOS) Switch

*D

w/ Manual (SOS) Switch

*1

CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL

*2

CENTER NO. 2 INSTRUMENT CLUSTER FINISH PANEL

*3

NAVIGATION ECU WITH BRACKET

*4

NO. 2 HEATER TO REGISTER DUCT SUB-ASSEMBLY

*5

NO. 5 ANTENNA CORD SUB-ASSEMBLY

*6

RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET

    Antenna Cord

    Installation
