Toyota Avalon Service & Repair Manual: Installation

INSTALLATION

PROCEDURE

1. INSTALL PANORAMIC VIEW MONITOR SWITCH

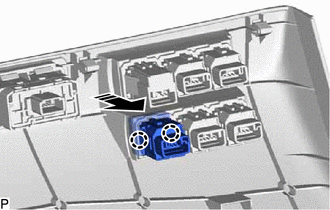

(a) Engage the 2 claws to install the panoramic view monitor switch as shown in the illustration.

Install in this Direction

2. INSTALL NO. 1 INSTRUMENT PANEL SUB-ASSEMBLY

Click here

3. CONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

Click here

4. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click here

5. INSTALL INSTRUMENT SIDE PANEL LH

Click here

6. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH

Click here

7. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH

Click here

8. INSTALL FRONT DOOR SCUFF PLATE LH

Click here
