Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during transmission control cable assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link

Battery terminal is disconnected/reconnected

Perform steering sensor zero point calibration

Lane Departure Alert System (w/ Steering Control)

Pre-collision System

Intelligent Clearance Sonar System*1

Lighting System (for Gasoline Model with Cornering Light)

Memorize steering angle neutral point

Parking Assist Monitor System

Panoramic View Monitor System

Replacement of ECM

Vehicle Identification Number (VIN) registration

MIL comes on

ECU communication ID registration (Immobiliser system)

Engine start function

Replacement of ECM

(If transaxle compensation code read from ECM)

  • Perform reset memory*2
  • Transfer transaxle compensation code
  • Perform road test to allow ECM to learn
  • Large shift shock
  • Deterioration of fuel efficiency

for Initialization

for Registration

Replacement of ECM

(If transaxle compensation code not read from ECM)

  • Perform reset memory*2
  • Reset transaxle compensation code
  • Perform road test to allow ECM to learn

Replacement of ECM

Code registration (Smart key System (for Start Function))

  • Wireless Door Lock Control System
  • Smart Key System (for Entry Function)
  • Smart Key System (for Start Function)
  • Steering lock function

  • *1: When performing learning using the Techstream.

    Click here

  • *2: Not necessary when ECM replaced with new one

PROCEDURE

1. REMOVE BATTERY

Click here

2. REMOVE ECM

Click here

3. REMOVE BATTERY CLAMP SUB-ASSEMBLY

Click here

4. REMOVE FRONT EXHAUST PIPE ASSEMBLY

Click here

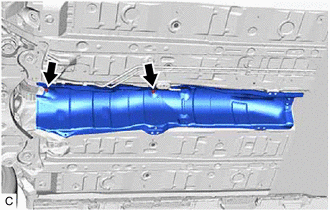

5. REMOVE FRONT LOWER NO. 1 FLOOR HEAT INSULATOR

(a) Remove the 2 nuts and front lower No. 1 floor heat insulator from the vehicle body.

6. REMOVE TRANSMISSION FLOOR SHIFT ASSEMBLY

Click here

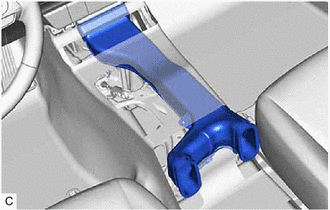

7. REMOVE NO. 1 CONSOLE BOX DUCT

(a) Remove the No. 1 console box duct.

8. REMOVE TRANSMISSION CONTROL CABLE ASSEMBLY

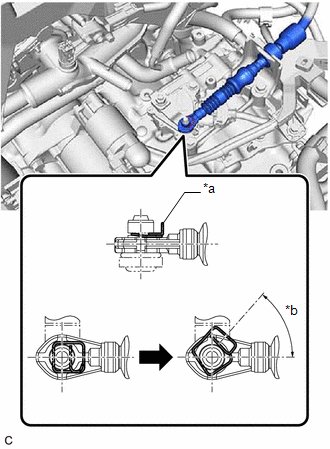

(a) While disengaging the clip as shown in the illustration, disconnect the transmission control cable assembly from the transmission control shaft lever together with the clip.

*a

Clip

*b

45° to 60°

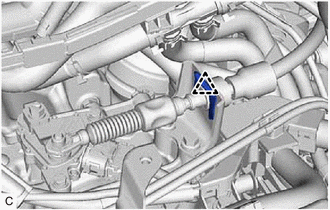

(b) Remove the clip and disconnect the transmission control cable assembly from the No. 1 transmission control cable bracket.

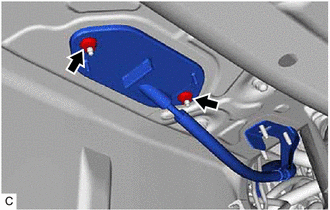

(c) Remove the 2 nuts and disconnect the transmission control cable assembly from the vehicle body.

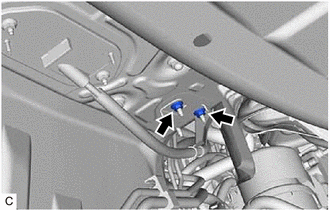

(d) Remove the 2 nuts and then remove the transmission control cable assembly from the vehicle body.

    Installation

    Transmission Wire
