Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: On-vehicle Inspection

ON-VEHICLE INSPECTION

CAUTION / NOTICE / HINT

HINT:

Refer to Problem Symptoms Table.

Click here

PROCEDURE

1. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH

Click here

2. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH

Click here

3. REMOVE NO. 1 ENGINE UNDER COVER

Click here

4. REMOVE REAR ENGINE UNDER COVER LH

Click here

5. INSPECT FRONT ENGINE MOUNTING INSULATOR

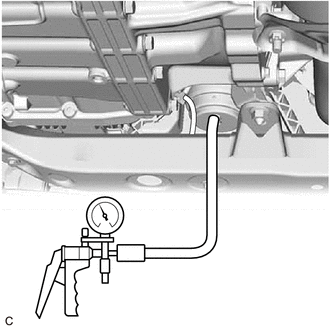

(a) Disconnect the vacuum hose from the front engine mounting insulator.

(b) Using a vacuum pump, apply vacuum of 80 kPa (600 mmHg, 23.6 in.Hg) and wait for 1 minute.

(c) Check that there is no change in the needle movement of the vacuum pump gauge.

OK:

Vacuum pressure holds.

(d) Check that there is no fluid leakage caused by a break in the diaphragm.

(e) Connect the vacuum hose to the front engine mounting insulator.

6. INSTALL REAR ENGINE UNDER COVER LH

Click here

7. INSTALL NO. 1 ENGINE UNDER COVER

Click here

8. INSTALL FRONT WHEEL OPENING EXTENSION PAD LH

Click here

9. INSTALL FRONT WHEEL OPENING EXTENSION PAD RH

Click here

    Installation

    Removal
